Standard series

  • VPG Foil Resistors

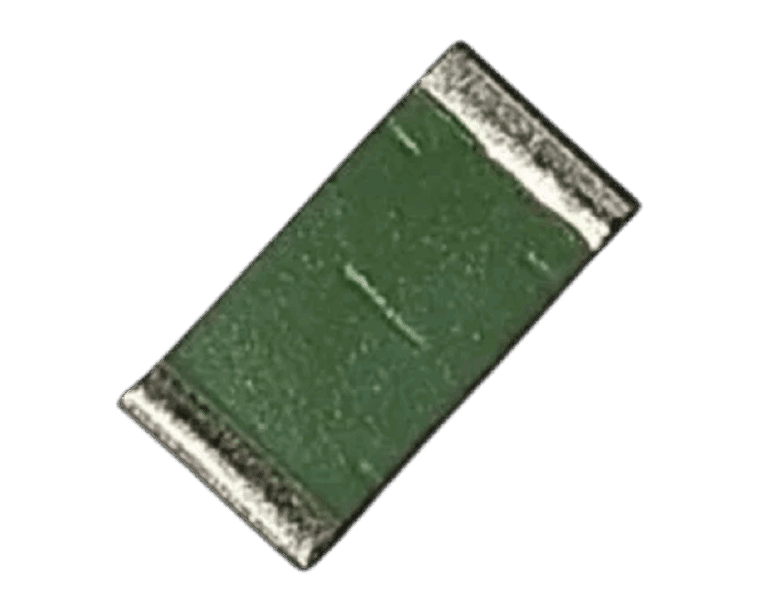

VPG FRCS2512

  • Hochpräziser Strommesswiderstand im Surface-Mount-Gehäuse
  • Gehäusegröße 2512
  • TCR auf maximal ±5 ppm/°C (–55°C bis +125°C, +25°C Bezug)
  • Nennleistung bei 70°C: 1 W
  • Widerstandstoleranz: auf ±0,1%
  • Widerstandsbereich: 100 mΩ bis 1 Ω
  • VPG Foil Resistors

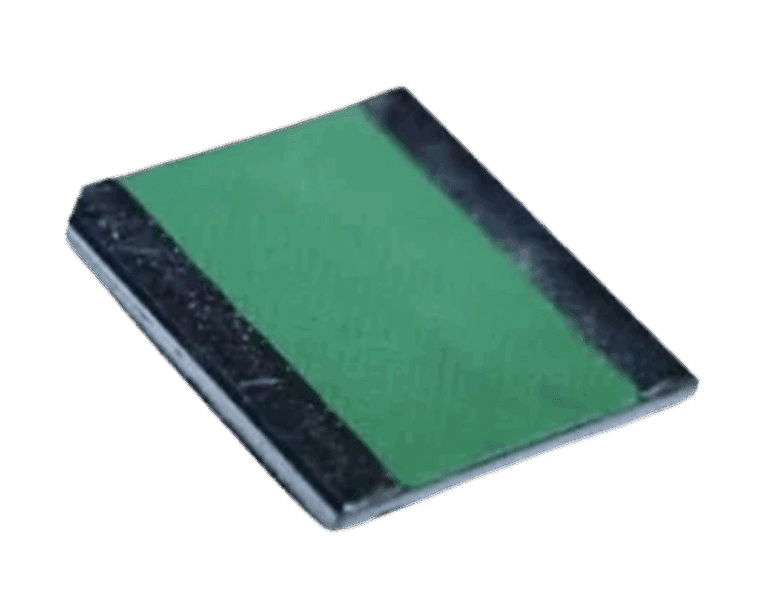

VPG FRCS3637

  • Hochpräziser Oberflächenmontierter Widerstand für präzise Strommessung
  • Größe des 3637-Gehäuses
  • Maximal 10 ppm/°C (–55°C bis +125°C, +25°C Referenz)
  • Leistung: bis zu 4 W
  • Widerstandstoleranz: bis ±0,1%
  • Widerstandsbereich: 40 mΩ bis 500 mΩ

VPG FRCS2512

  • Hochpräziser Strommesswiderstand im Surface-Mount-Gehäuse
  • Gehäusegröße 2512
  • TCR auf maximal ±5 ppm/°C (–55°C bis +125°C, +25°C Bezug)
  • Nennleistung bei 70°C: 1 W
  • Widerstandstoleranz: auf ±0,1%
  • Widerstandsbereich: 100 mΩ bis 1 Ω

VPG FRCS3637

  • Hochpräziser Oberflächenmontierter Widerstand für präzise Strommessung
  • Größe des 3637-Gehäuses
  • Maximal 10 ppm/°C (–55°C bis +125°C, +25°C Referenz)
  • Leistung: bis zu 4 W
  • Widerstandstoleranz: bis ±0,1%
  • Widerstandsbereich: 40 mΩ bis 500 mΩ
